High Efficiency Outdoor Waterproof LED Lights IP65 Cree chips
waterproof 60watt 100watt 200watt outdoor Smd aluminum
High Class LED Lighting offer lamps in warm, natural,pure and cool
white with colour temperatures measured in Kelvin (K). The lower
the colour temperature is, the warmer the light given by the LED:
· Warm white = 2700K-3200K
· Natural white = 4000K-4500K
· Pure white = 5000K-5500K
· Cool white = 6000K-6500K
Production Description:
1. Adopt LED best CREE or PHILIPS Chip with Cob 60w /80w / 100w
/120w/ 150w 160w /180w /200W/24OW encapsulation. LED efficiency is
more than 130lm/w, and Life time is more than 50000hours.
2. By using good quality CE and RoHS approved constant current LED
driver, make sure the LED Chip life time.
3. Ex-changeable Adaptor,10 second can complete changing
4. Slip Filter, Square pole, Round pole, Trunnion, Wall mount
adaptor optional,easily stock.
5. We provide OEM service, welcome to customize
Technical Datas:
Model | S001 |
LED Power | 60W-240W |
LED Chip | American CREE high power LED luminous source, with LM-80 test
report, providing excellent lumen output and high CRI, is
compatible with Bridgelux, Sharp, Nichia COB LED source as well |
Supply Voltage Range | AC100-315V |
Frequency Range | 50-60Hz |
Power Factor | >0.95 |
Color Temperature | 2000-7500K |
Dimming: | Dali 1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system |
Lamp Luminous Flux | 120lm/W, also can change according to your need |
System Efficiency | >90% |
Light Guide System | PC Lenses |
Housing Material | Die-cast Aluminum |
Installation Pipe Diameter: | Φ60mm |
Shock Protection | IK 10 |
Use Life | >50000H |
Protection Grade | IP65,IP66,IP67 |
N.G | 5.00KG |
W.G | 5.80KG |
Carton Size | 660*290X190mm |
Detail size:

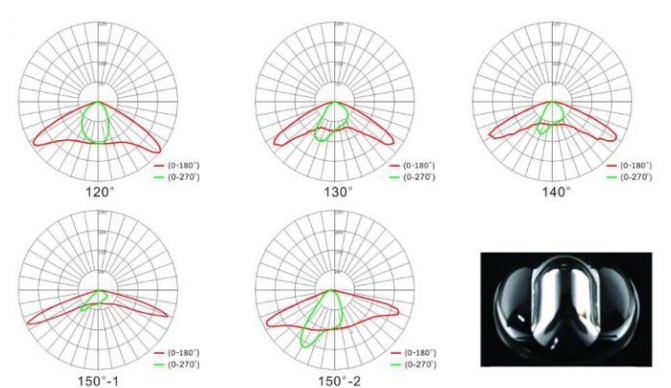

Light Distribution Curve:
High quality glass lens, light transmission rate can reach 97%,
higher than ordinary PC and PMMA lens; the softening and aging
problem does not occur, stable performance; and good light
distribution to form a wide bat-wing lighting effects and good
lighting uniformity.

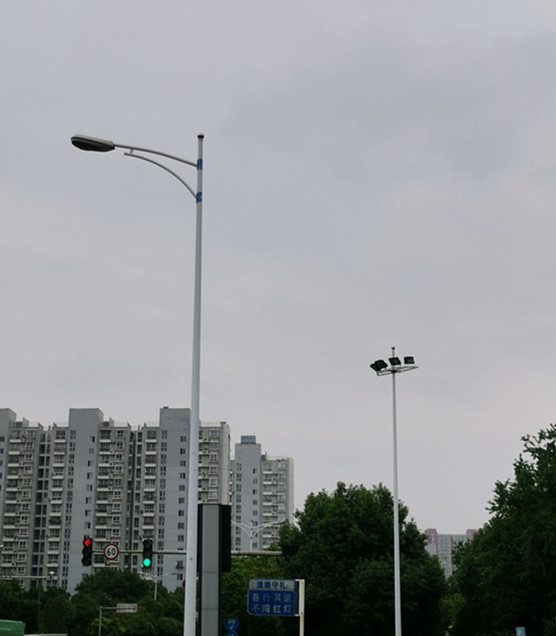

Application Areas:
Urban main roads, secondary roads, commercial squares, industrial
areas, large and medium-sized playgrounds.
Highway and other outdoor road, station, pier and other places
lighting.
